SKU : 911-7E81-002

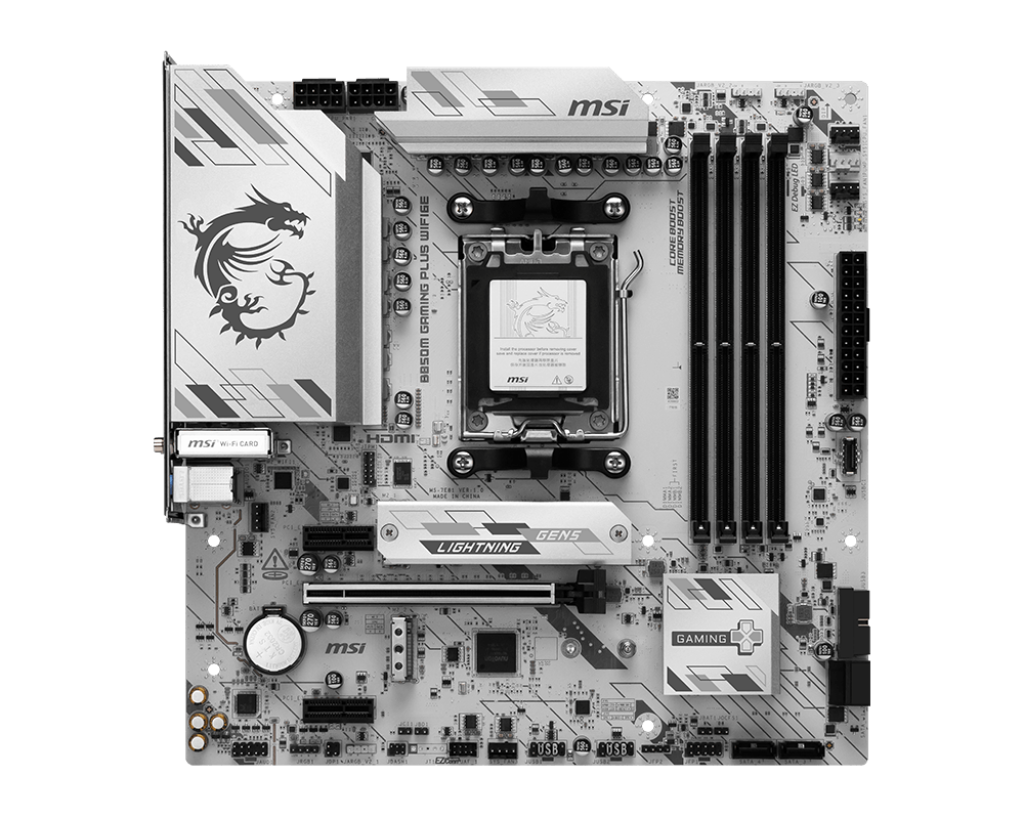

MSI B850M GAMING PLUS WiFi 6E – Carte mère AM5 micro-ATX | Boutique MSI France

164,00 €
TTC

Délai de livraison

Points MSI
En achetant ce produit, vous pouvez : 99 Les points MSI peuvent être utilisés pour obtenir des cadeaux gratuits comme :
  • Tasse Steam/Nintendo/XBOX
  • Cupón de Carrefour
  • Cupón de Foot Locker
Plus de détails et conditions ici Gagner des points MSI si vous participez déjà au programme de récompenses MSI.

Garantie
3 ans de garantie

Cadeau

  • AMD B850
  • Socket AM5
  • Micro ATX
  • Support des processeurs AMD Ryzen™ 9000 / 8000 / 7000
  • Support de la mémoire DDR5, Dual Channel DDR5 8200+ MT/s (OC)
  • Design Ultra Performance : alimentation double rail à 10+2+1 phases avec P-PAK, deux connecteurs d'alimentation pour processeur à 8 broches, technologies Core Boost et Memory Boost, PCB de niveau serveur à 6 couches de 2 onces de cuivre
  • Frozr Guard : dissipateur plus large, pads thermiques 7 W/mk pour MOSFET, pads thermiques supplémentaires pour les inductances de puissance et slot M.2 Shield Frozr II
  • Connexion fluide : normes 2,5G LAN et Wi-Fi 6E ultrarapides, des solutions de dernière génération pour une utilisation professionnelle et multimédia, qui assurent une connexion et des transferts de données sécurisés, stables et ultrarapides
  • Expérience gaming ultrarapide : slots PCIe 4.0, Lightning M.2 Gen5 x4 et port USB Type-C à l'avant
  • Fonctionnalités EZ DIY : EZ M.2 Clip II, Design EZ-Conn et EZ Antenna
  • Audio Boost : une expérience immersive grâce à un son de qualité digne d'un studio professionnel

  • Fiche technique
Chipset AMD B850
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot (Qty)
2x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E2 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio Realtek® ALC897
7.1-Channel High Definition Audio
Storage 2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G (Qty)

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Realtek® 8125D 2.5G LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x PUMP_SYS Fan
3x System Fan
1x ARGB+FAN Header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH Wi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE 4x EZ Debug LED
1x EZ Memory Detection LED

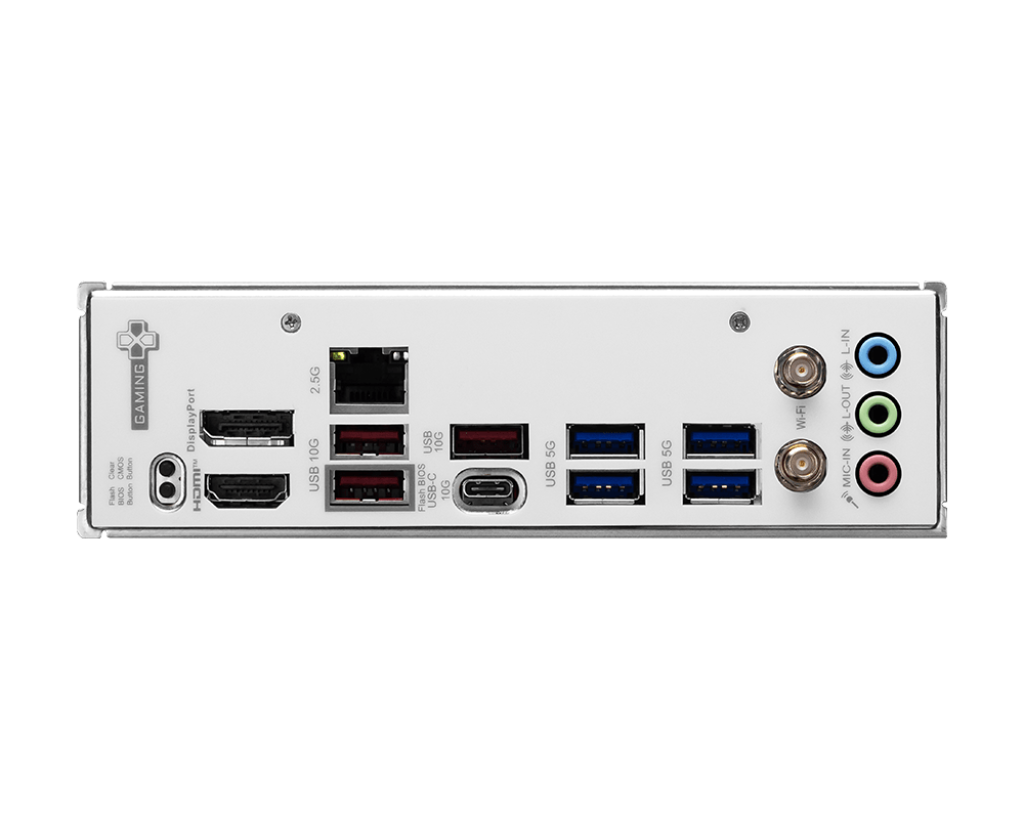

BACK PANEL PORTS
  1. Clear CMOS Button
  2. DisplayPort 1.4
  3. 2.5G LAN
  4. USB 10Gbps (Type-A)
  5. Wi-Fi / Bluetooth
  6. HD Audio Connectors
  7. Flash BIOS Button
  8. HDMI™
  9. USB 10Gbps (Type-A)
  10. USB 10Gbps (Type-C)
  11. USB 5Gbps (Type-A)
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info mATX
243.84mmx243.84mm

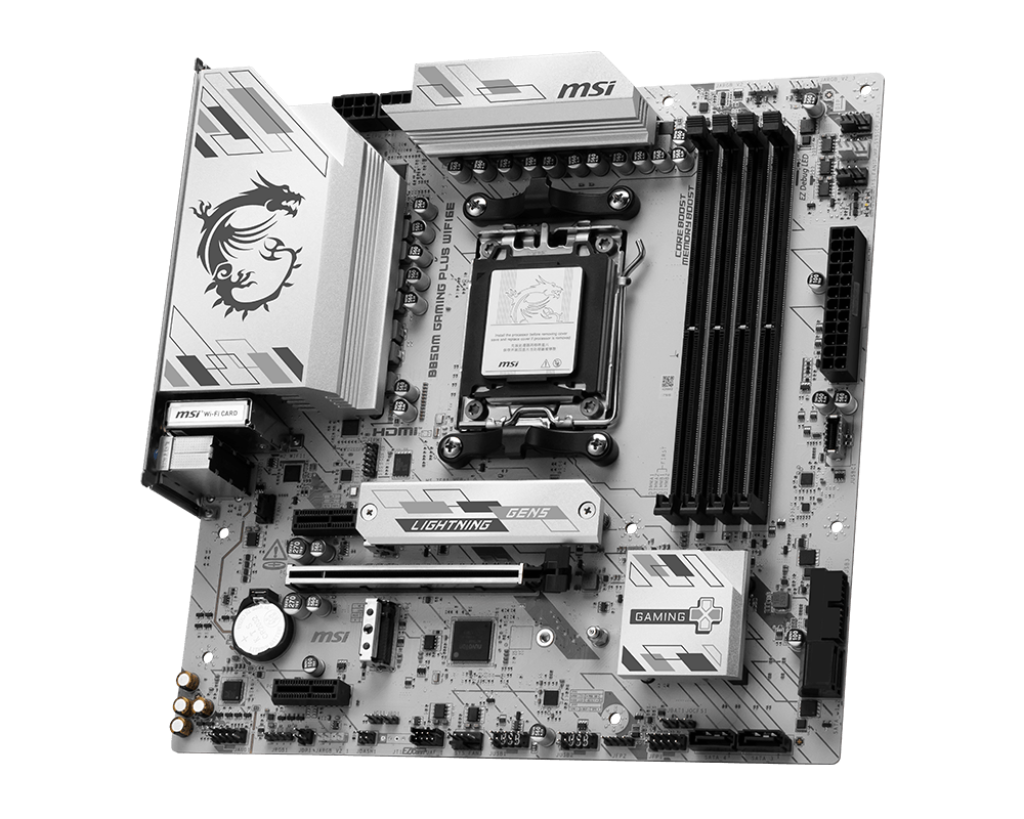

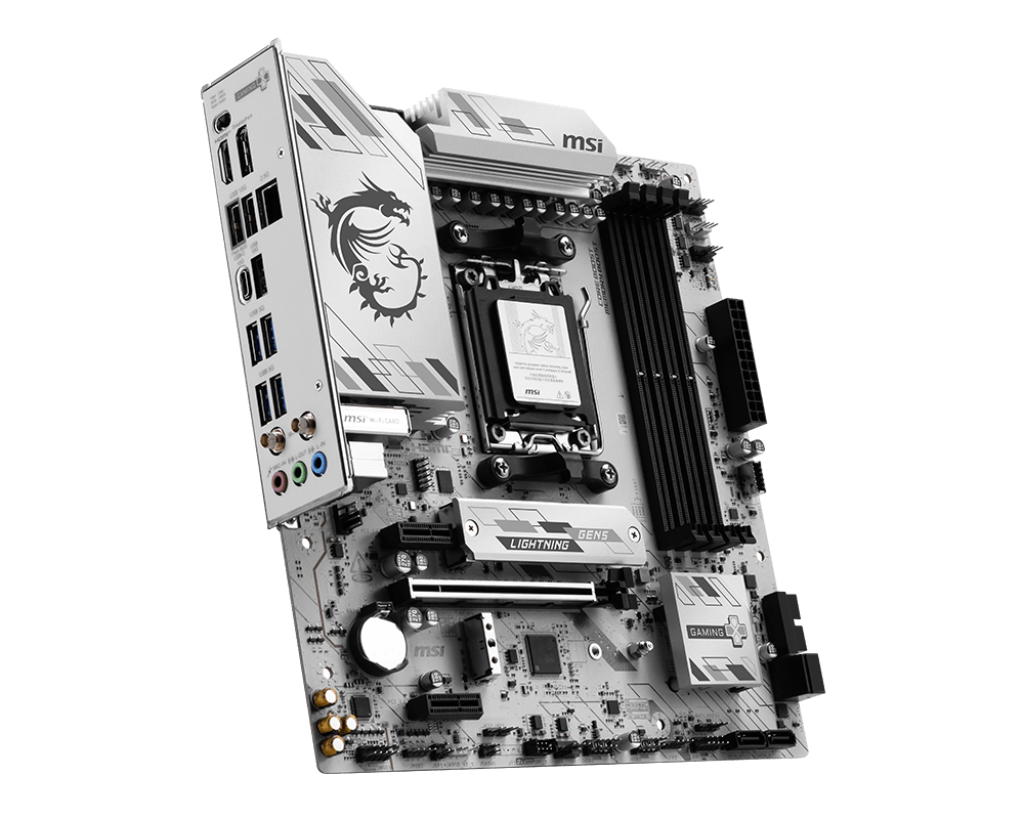

B850M GAMING PLUS WIFI6E
