Z790 GAMING PLUS WIFI
est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Délai de livraison
Commandez aujourd'hui et vous recevrez votre colis entre
15 déc.
-
17 déc.
Points MSI
En achetant ce produit, vous pouvez :
36 Les points MSI peuvent être utilisés pour obtenir des cadeaux gratuits comme :
Tasse Steam/Nintendo/XBOX
Cupón de Carrefour
Cupón de Foot Locker
Gagner des points MSI si vous participez déjà au programme de récompenses MSI.
Garantie
3 ans de garantie
Securité et paiement
Free Package

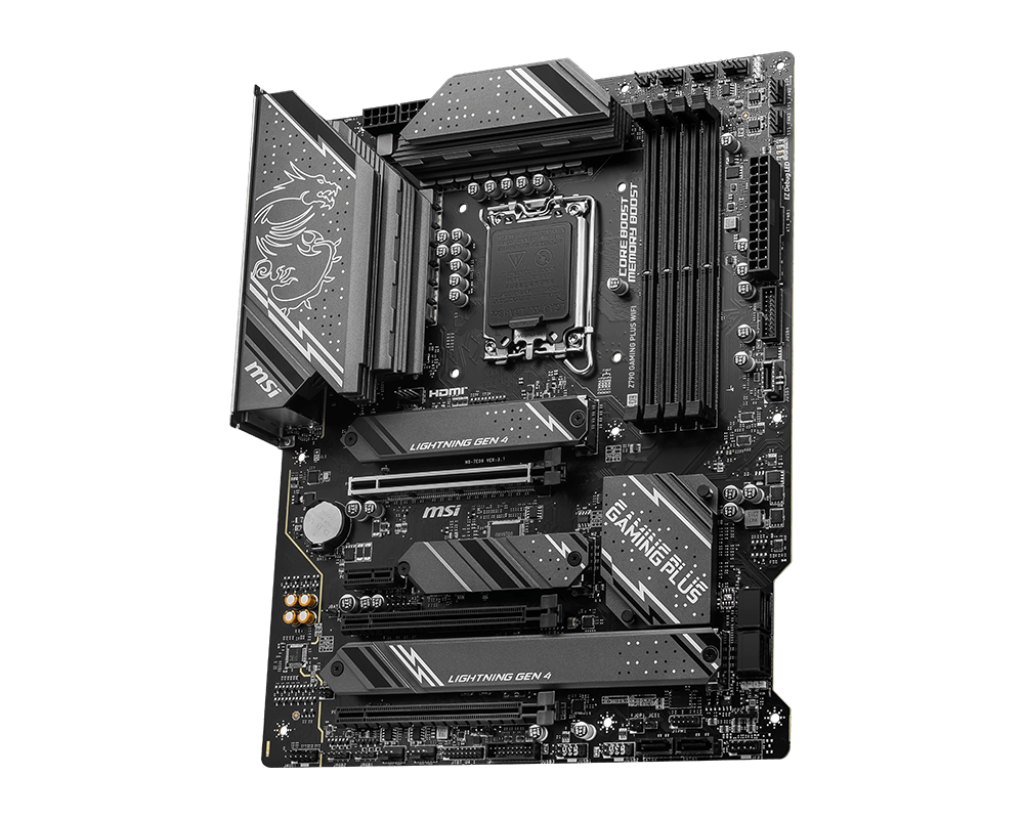

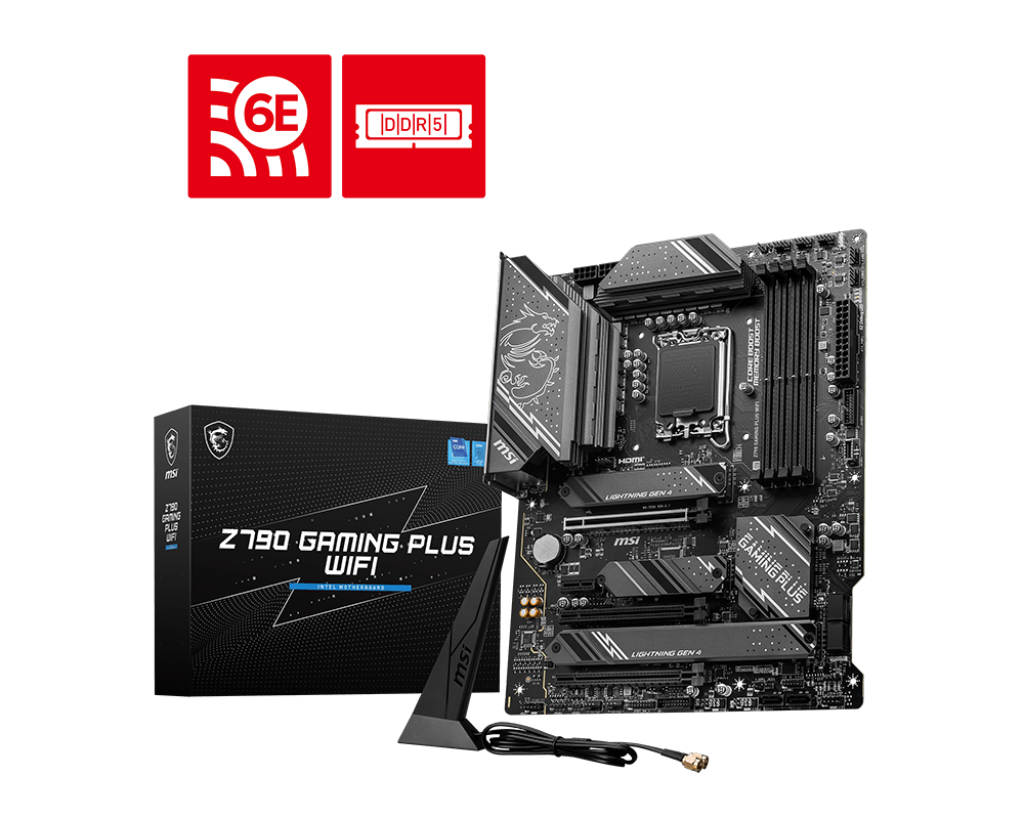

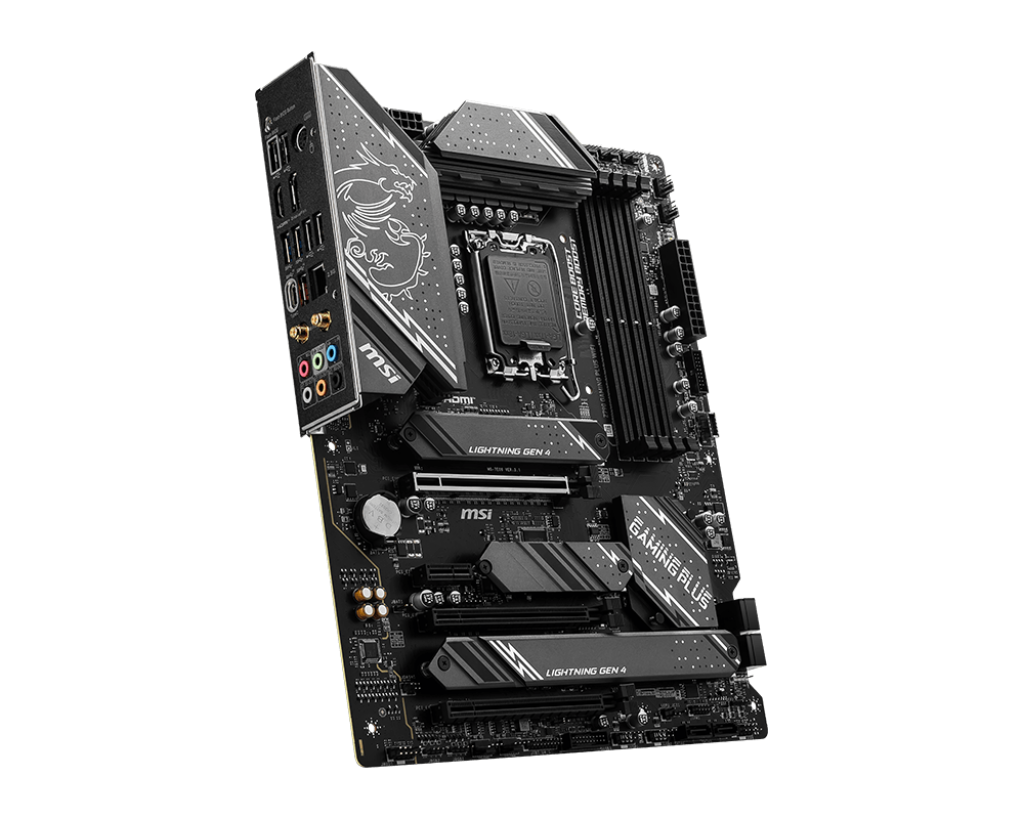

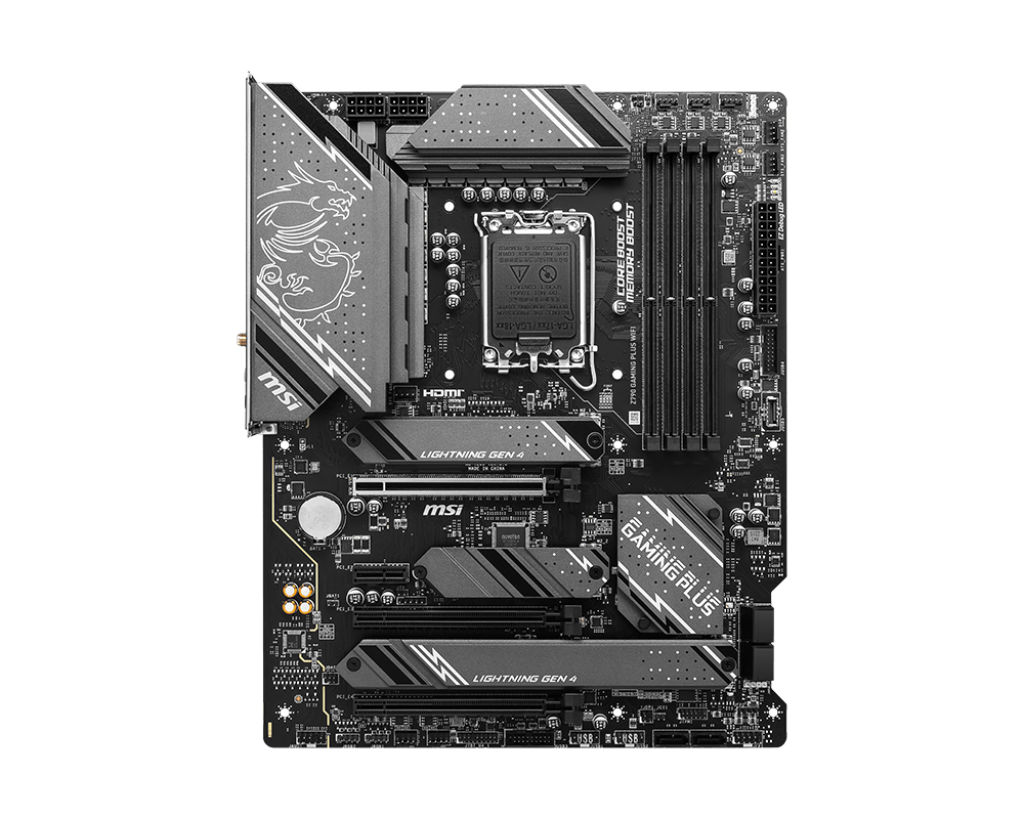

Z790 GAMING PLUS WIFI
Support des processeurs Intel® Core™ de 12ème et 13ème génération / Pentium® Gold et Celeron® pour socket LGA 1700
Support mémoire DDR5, jusqu'à 7200+(OC) MHz
Alimentation double rail à 14+1+1 phases avec DrMOS, deux connecteurs d'alimentation processeur à 8 broches et technologies Core Boost et Memory Boost
Solution de refroidissement complète avec dissipateur plus large, pads thermiques MOSFET 7 W/mk et pads thermiques supplémentaires pour les inductances de puissance
Expérience ultrarapide avec des slots PCIe 5.0, Lightning M.2 Gen4 x4 avec M.2 Shield Frozr et USB 3.2 Gen2x2 20G
Circuit imprimé de qualité à six couches de cuivre de deux onces
Audio Boost pour un son de qualité et une expérience immersive
Fiche technique
Chipset
INTEL Z790
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory
4x DDR5, Maximum Memory Capacity 256GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
1x HDMI™ Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage
4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty)
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN
Intel® 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
Keyboard / Mouse
DisplayPort
USB 2.0
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI™ 2.1 Port
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT
PCB Info
ATX 243.84mmx304.8mm
